High Performance Louvre Systems

2UL Double Bank Universal Louvre

Product Description

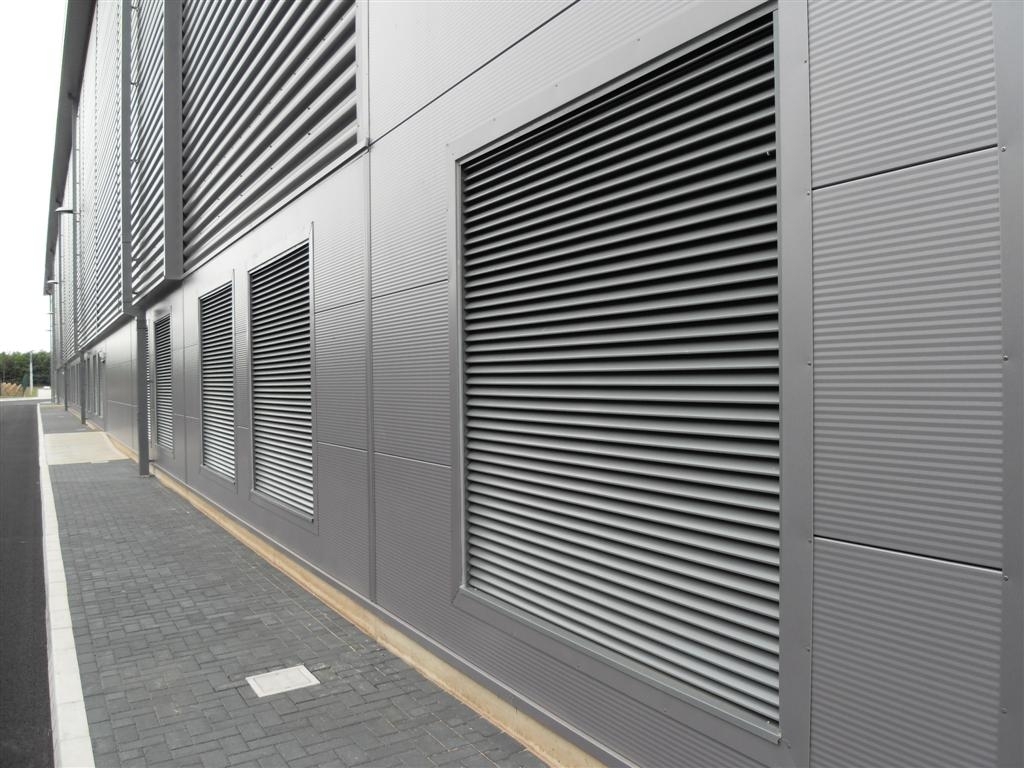

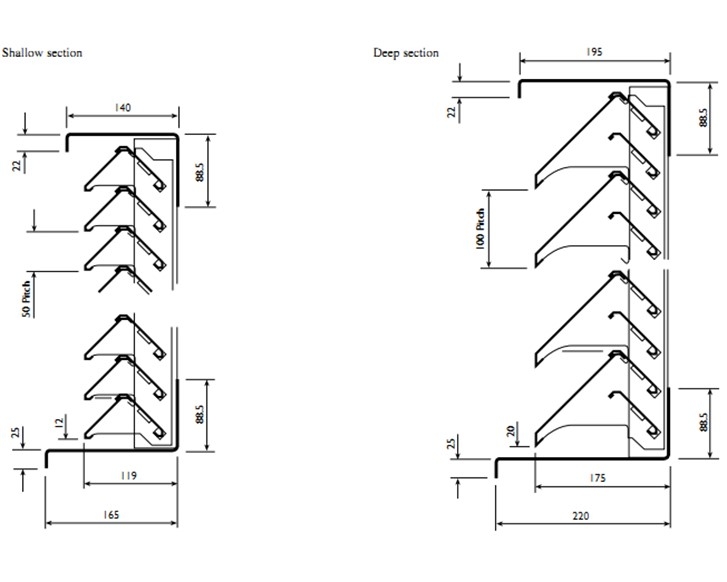

Performance tested and classified in accordance with the New Zealand Standard AS/NZS 4740:2000. The Colt 2UL Louvre, is a double bank louver system providing an excellent combination of architectural, aerodynamic and rain defence properties. Colt Products and Systems 2UL louvres have two standard louvre profiles: Shallow (50mm pitch) and Deep (100mm pitch). Primarily used where excellent rain defence is required and intake velocities are between 1m/s and 2.2m/s.For more information please contact us:
T 04 913 2072E info@colt.co.nz

Choosing the Right Louvre

Download

Screening & Ventilation Louvre Data Sheet

Download

Louvre Selection Tool

Download

How to use the Louvre Selection Tool

Download

2UL-SH .dwg

Download

2UL-DH .dwg

Download
